Description
Voici le bloc de puissance qui fait couler tant d’encre trés trés impressionant à ce niveau de prix.
– Hegel H20
– H20 High-End Power Amplifier
– Output power: More than 200W + 200W in 8 ohms, Dual mono

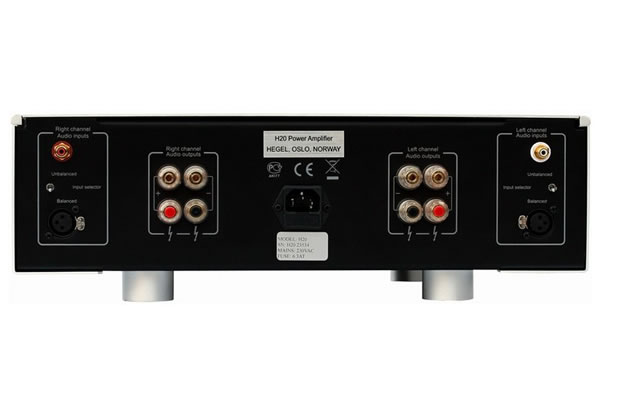

– Inputs: RCA unbalanced and XLR balanced
– Speaker outputs: Two pairs of heavy duty gold plated terminals
– Input Impedance: Balanced 10kohm, unbalanced 50kohm
– Frequency response: Less than +/- 0.2 dB deviation 20Hz-20kHz
– Phase response: Less than 2 degrees deviation 20Hz- 20kHz
– Signal to noise ratio: More than 100dB
– Crosstalk: Less than -100dB
– Distortion: Less than 0.006 % at 100W i 8 ohm
– Intermodulation: Less than 0.01 % (19kHz + 20kHz)
– Damping factor: More than 1000
– Power Supply: 1000VA dual mono, 90 000uF capacitors
– Output stage: 20 pcs 15A 150W high speed bipolar transistors
– Power consumption: 60W in standby switched on
– Dimensions/weight: 12cm x 43cm x 37cm (HxWxD), weight 25kg
– H20 High-End Power Amplifier
– Output power: More than 200W + 200W in 8 ohms, Dual mono
– Inputs: RCA unbalanced and XLR balanced
– Speaker outputs: Two pairs of heavy duty gold plated terminals
– Input Impedance: Balanced 10kohm, unbalanced 50kohm
– Frequency response: Less than +/- 0.2 dB deviation 20Hz-20kHz
– Phase response: Less than 2 degrees deviation 20Hz- 20kHz
– Signal to noise ratio: More than 100dB
– Crosstalk: Less than -100dB
– Distortion: Less than 0.006 % at 100W i 8 ohm
– Intermodulation: Less than 0.01 % (19kHz + 20kHz)
– Damping factor: More than 1000
– Power Supply: 1000VA dual mono, 90 000uF capacitors
– Output stage: 20 pcs 15A 150W high speed bipolar transistors
– Power consumption: 60W in standby switched on
– Dimensions/weight: 12cm x 43cm x 37cm (HxWxD), weight 25kg
